PRODUCT DESCRIPTION

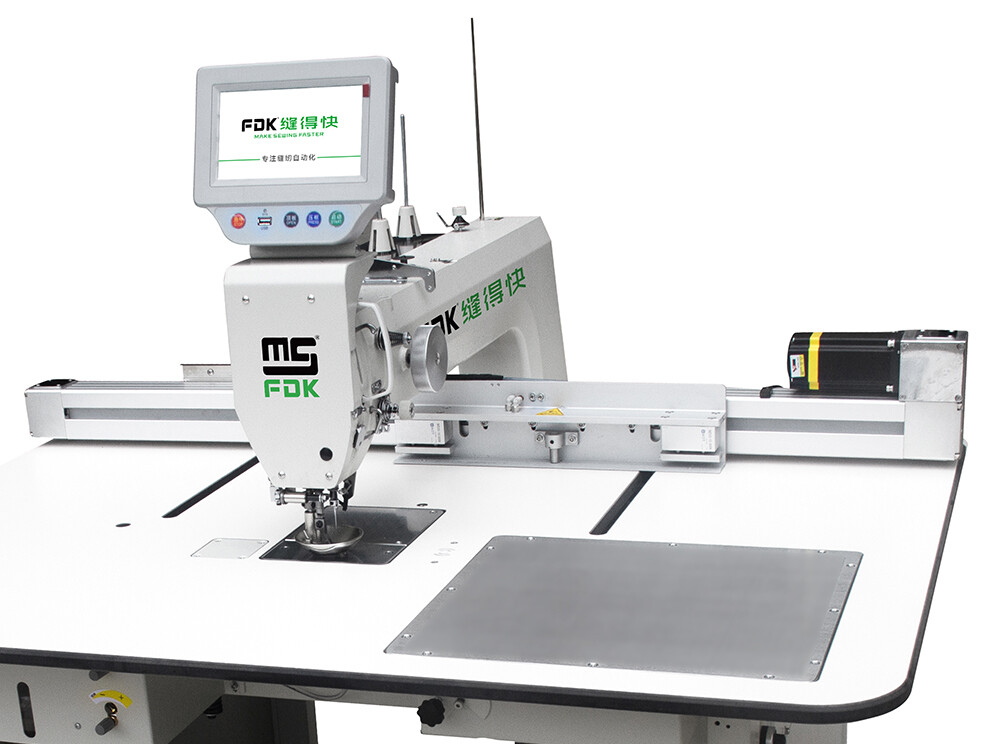

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE


NO IRONING OR POSITIONING REQUIRED EASY TO JOIN THE ASSEMBLY LINE



Applied to

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE

Pocket Cover

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE

Sew Turtle Back On

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE

Foot Fork

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE

Placket Opening

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE

Sew Pocket On

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE

Make Pocket

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE

Shirt Cuffs

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE

Shirt Collarcollar



Features


1.The Four-Axis Design of Flexible Sewing, Can be on the Assembly Line of the Intelligent Template Machine

It covers an area of only 1.2 m × 1.1 m, which is fully suitable for the production line


MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE

2. Equipped with a thread catcher device at the beginning of sewing and a short thread tail function at the end of sewing
no thread at beginning sewing, easily exchange upper and bottom thread, greatly improve the sewing quality.


3. The RFID Fast Reading System

Adopting RFID chip technology, can freely preset template data, replace the template more convenient and accurate.




MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE


MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE

4. Double Presser Foot Design

A. independent rail presser foot effectively improve the leveling function of the template,avoid dislocation and clamp.




B. When sewing, the middle pressure foot changes according to the fabric thickness, which is more stable and the thread is more beautiful.


5. Optional And Effcient Air Absorption Module
Silent air suction system, low power strong air suction, can be automatically closed air suction during sewing , to avoid sucking the fabric caused by deformation.

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE


6. Optional Laser Cutting Device to Improve the Demand of Garment Process

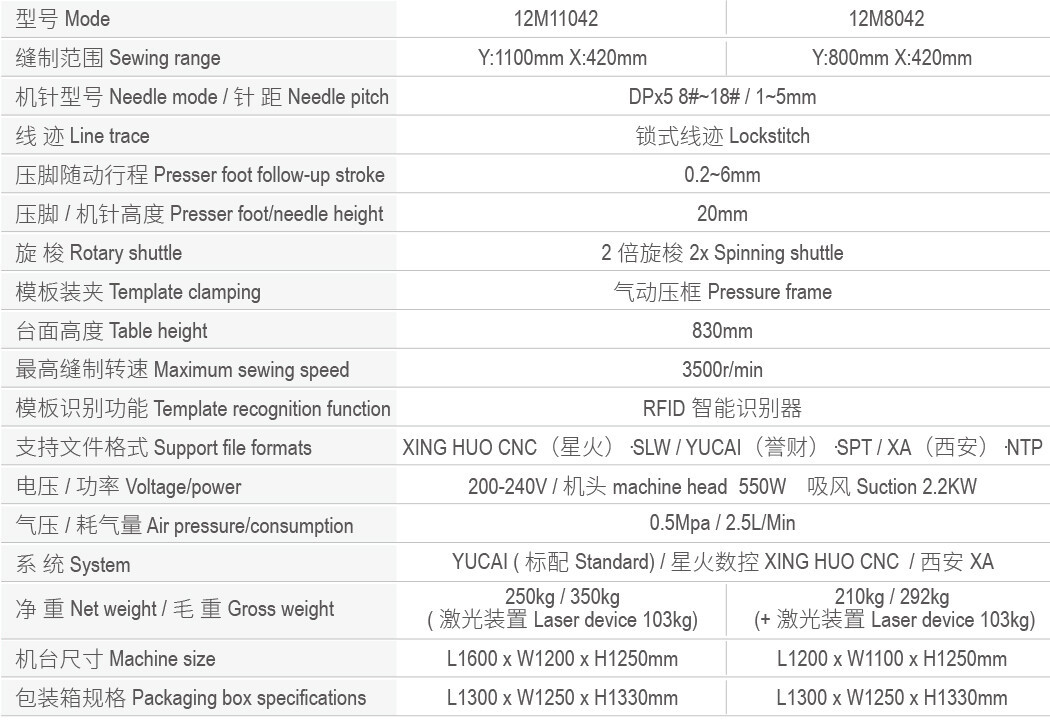

Parameters

MS-12M INTELLIGENT INLINE COMPACT SEWING TEMPLATE MACHINE
